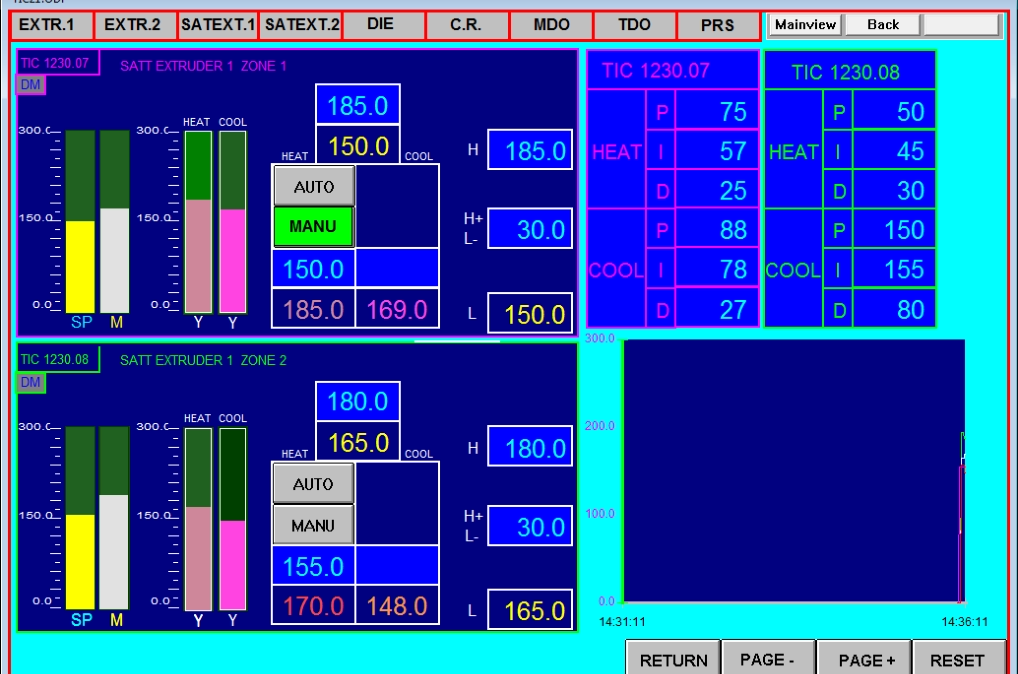

DO Heat

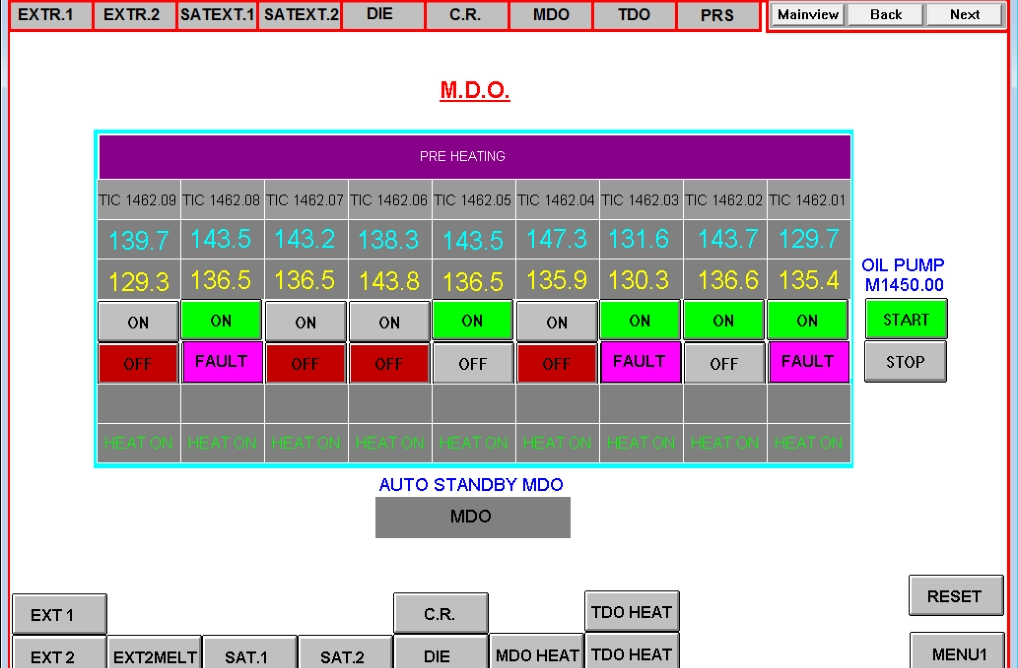

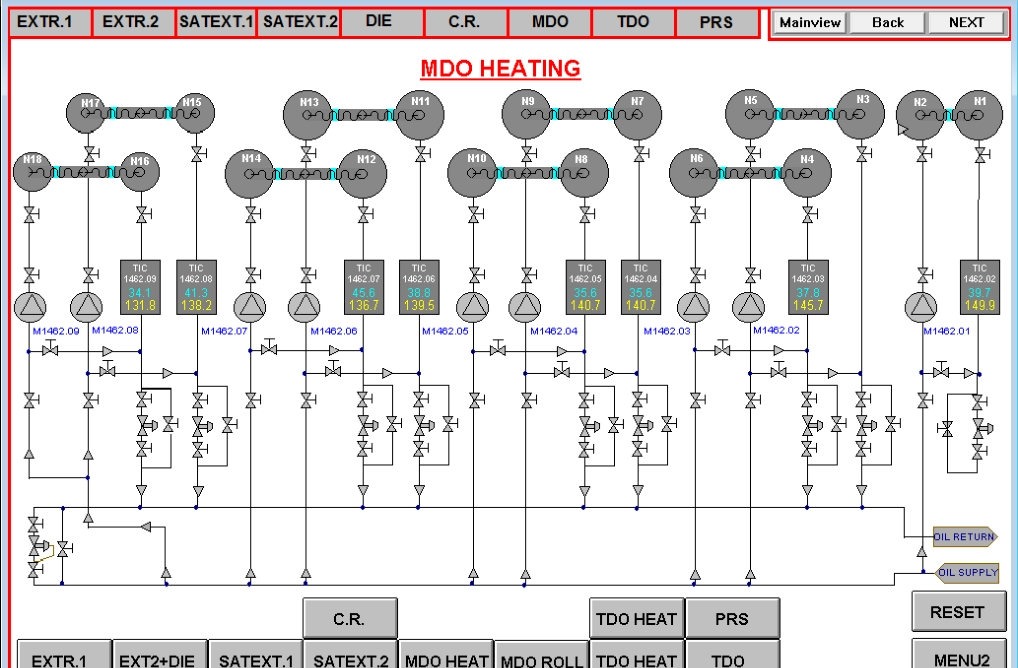

MDO Heat

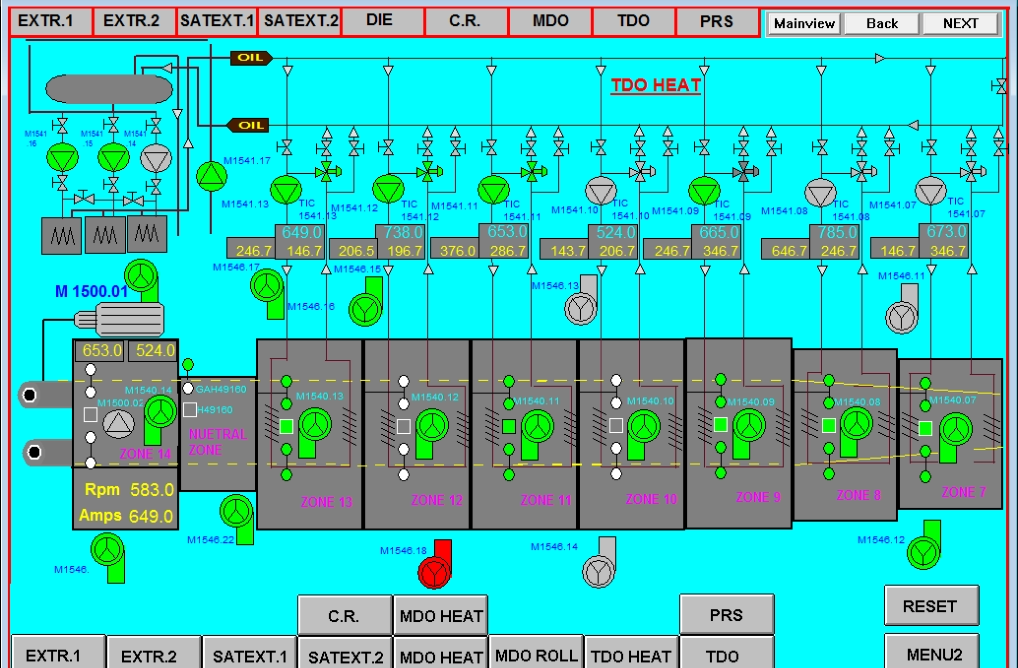

PRS
MDO

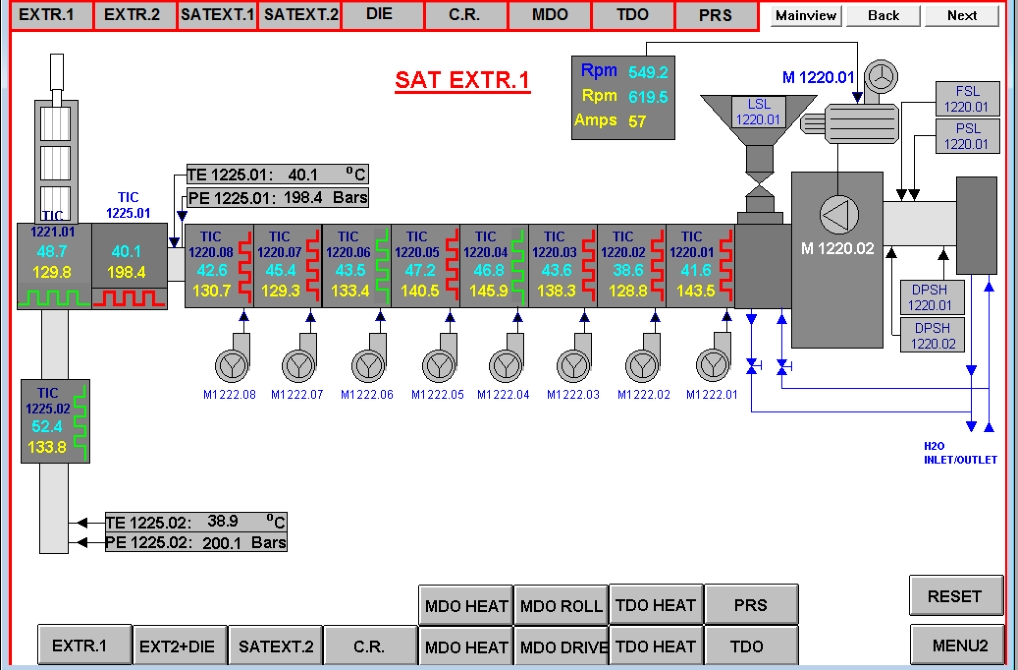

Sat. Extruder 1

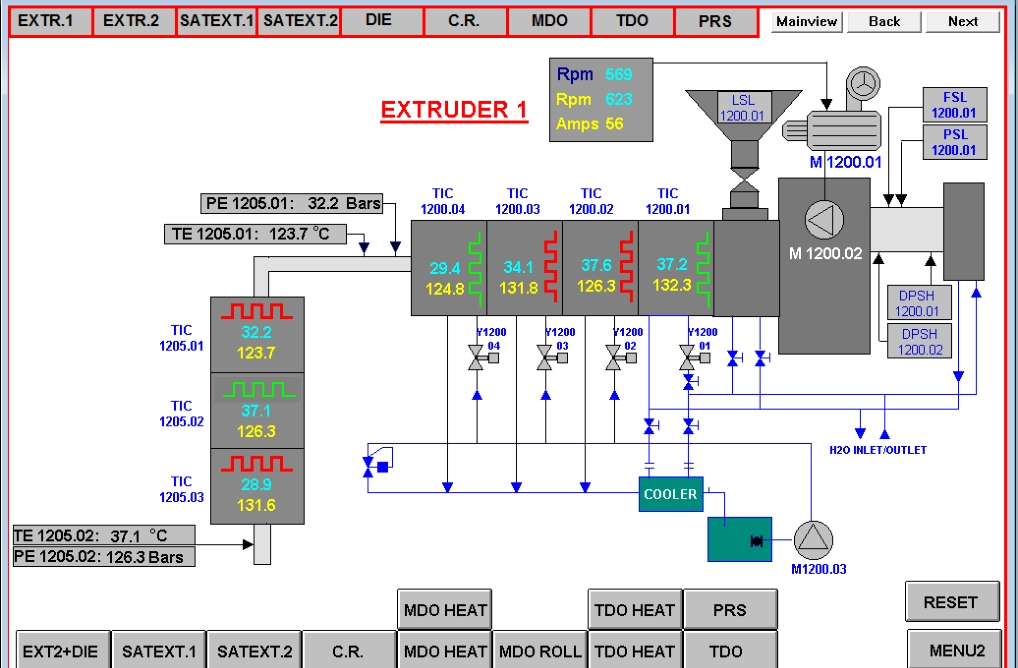

Extruder 1

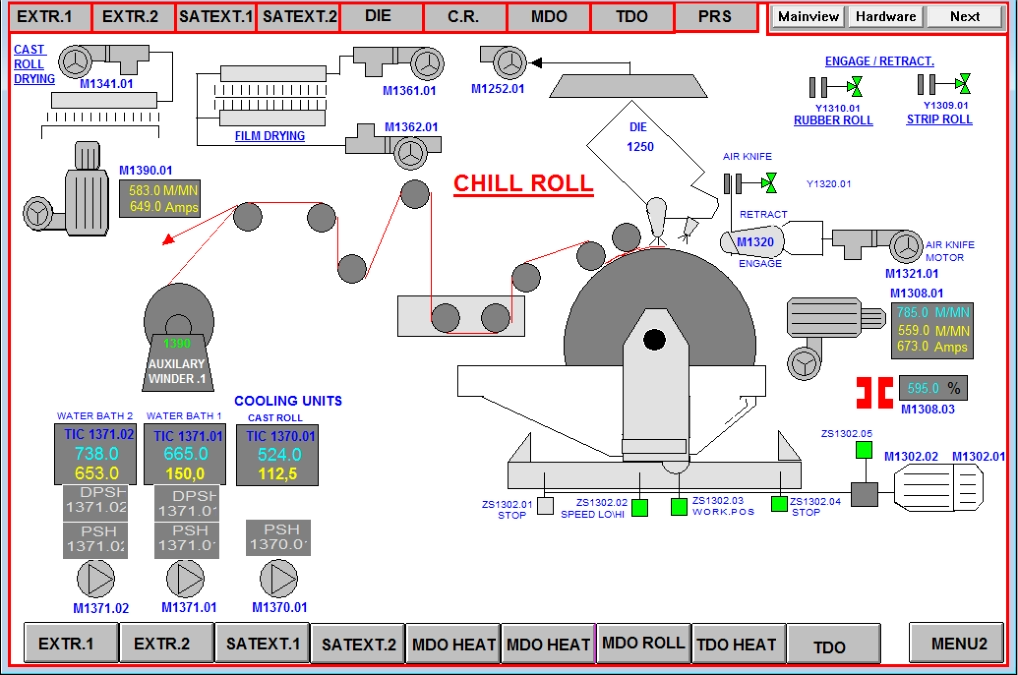

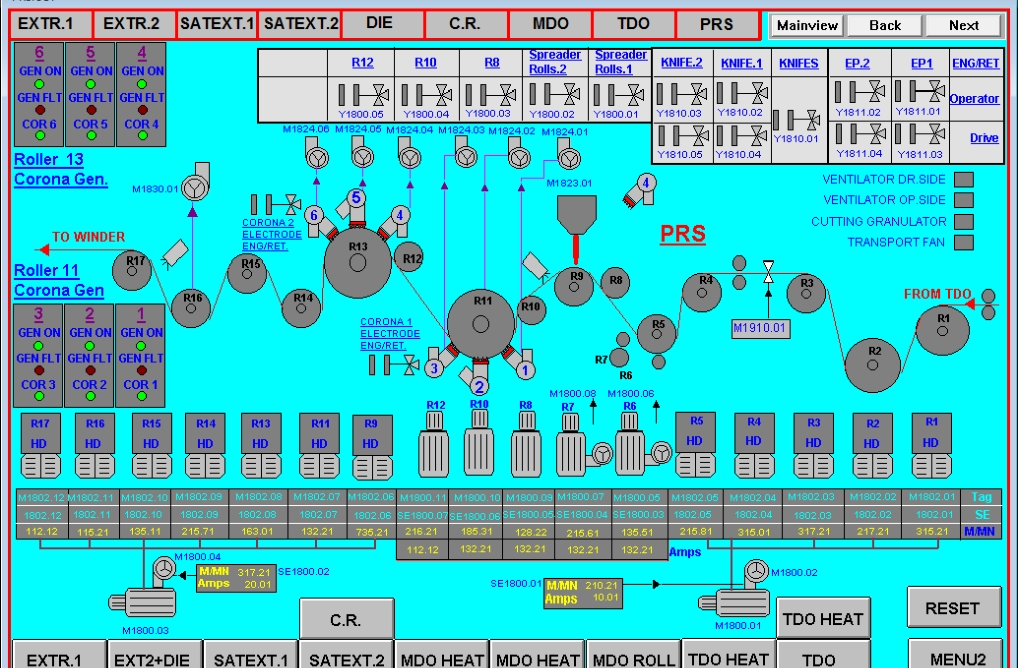

Mainview

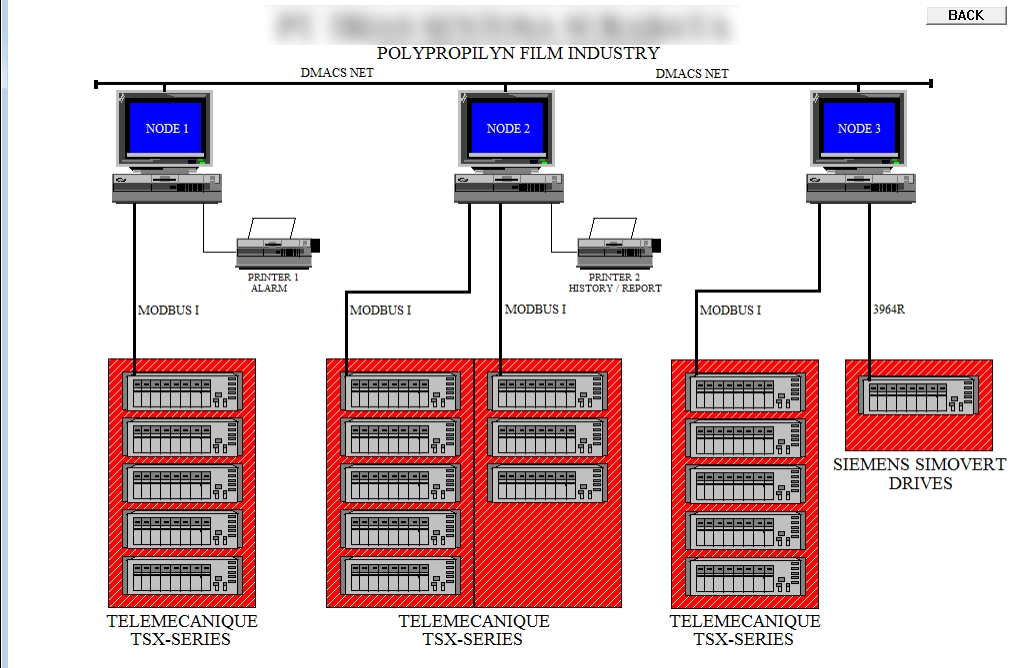

SYSTEM ARCHITECTURE
Hardware
•
4 Telemechanique TSX-87 PLCs (3000 I/O)
•
XBT Operator Consoles 14” with Touch screen,
•
2 XBT Text Display Units
•

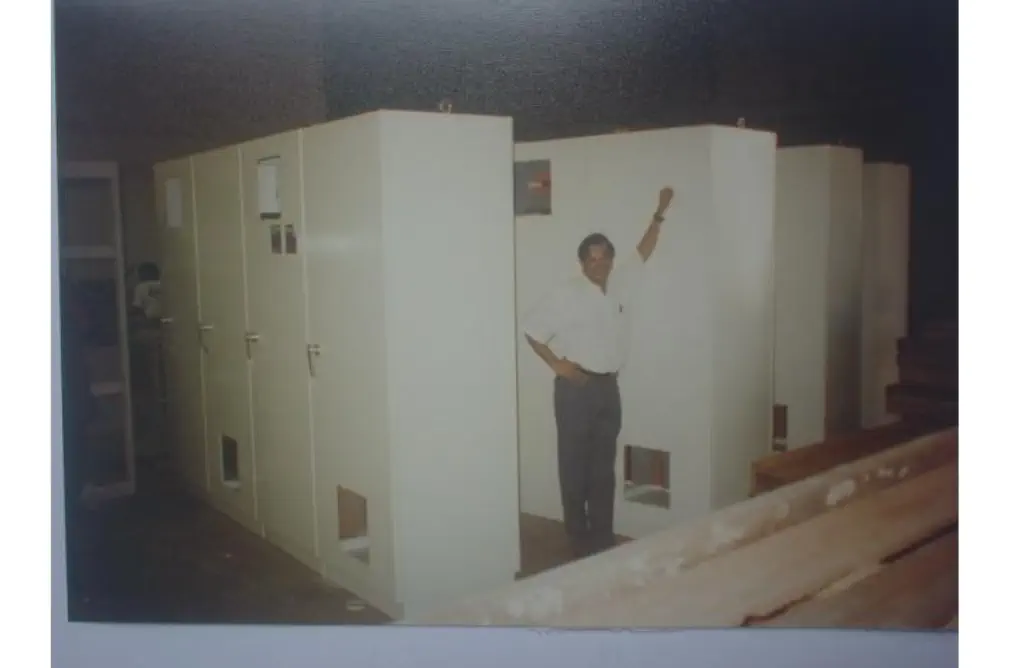

PLC Cabinet
Software
•
3 Intellution SCADA Systems + 3 PCs with 21” Monitors
•
Distributed Networking Hardware 5000 I/O Tags
•
Receipt Package, Production Report in MS EXCEL, MODBUS PROTOCOL for
Telemechanique TSX–87 Series PLCs, 3964r Protocol for SIEMENS SIMATIC S5-135
PLCs
Scope of Work
Panel Fabrication, Assembly, Wiring, Testing, Program Development, FAT, Installation,
SAT and Commissioning.
Location
Surabaya, East Java
Process Control System for Polypropylene Film Industry
